Performance & Characteristics
This Machine is suitable for small Aluminum Film Cores; Tissue Paper Inner Cores; Paper Cans, DTY POY Tubes etc.
1. This machine adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
2. Cutting section adopted Servo Synchronous Tracking Cutting System makes it higher precision.

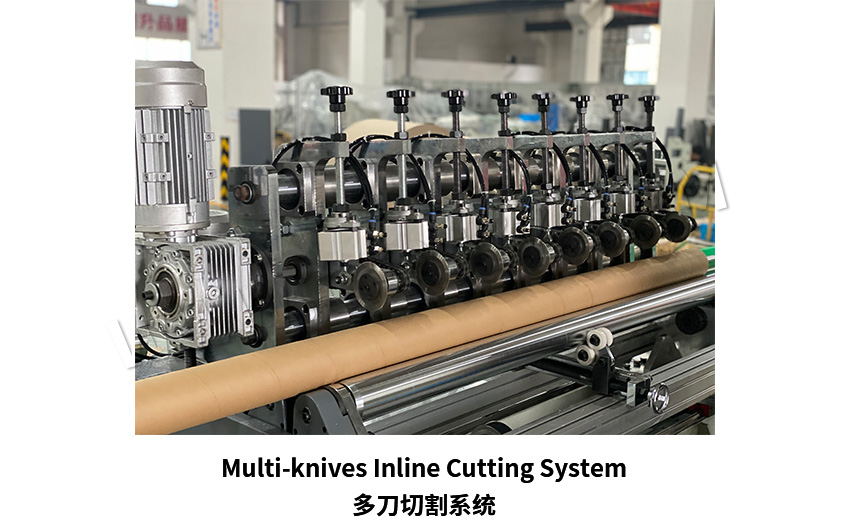

3. Multi-blades cutting system; 5 blade online cutting makes it higher efficiency.
Technical Parameter
Paper Layer | 3-16 layers |
Inner Diameter | 20-120mm |
Wall Thickness | 1-10mm |
Online Cutting Length | 100-1200mm |

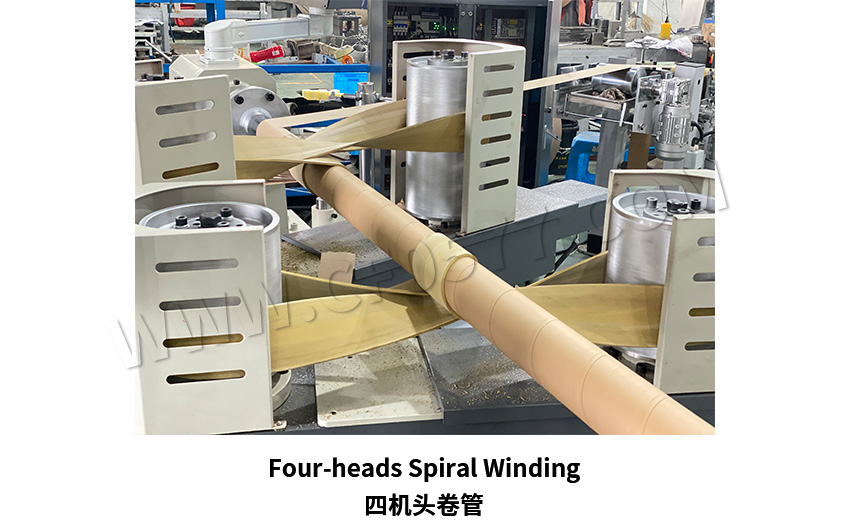

Winding Nose | Three heads double belts |
Working Speed | 1-30 meters/min |
Cutting System | Multi-cutters (5 pieces online) |
Cutting way | Servo motor synchronism tracking cut |
Length Fixing | By Encoder |
Gluing Way | Double sides |
Operator | 1-2 persons |
Speed Regulation | By Inverter |
Power Supply | 380V/3Phase/50Hz |
Paper Reel Stand | 16 Layers |
Glue Unit | 16 Layers |
Inner Paper Stand | 1 Set |
Measurement | 6355*1565*1800mm |
Weight | 4500kgs |
