Performance & Characteristics

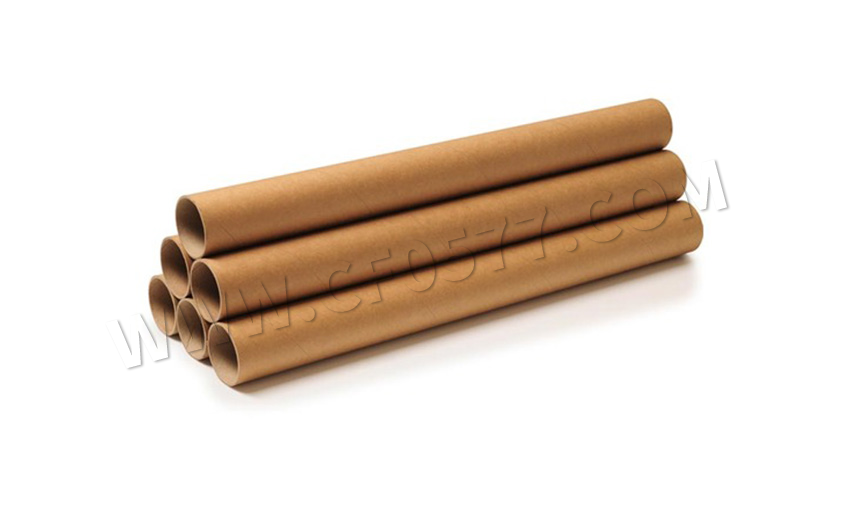

This Machine is suitable for small Paper Cores like Preservative Film Cores; Tissue Paper Inner Cores etc.
1. This machine adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

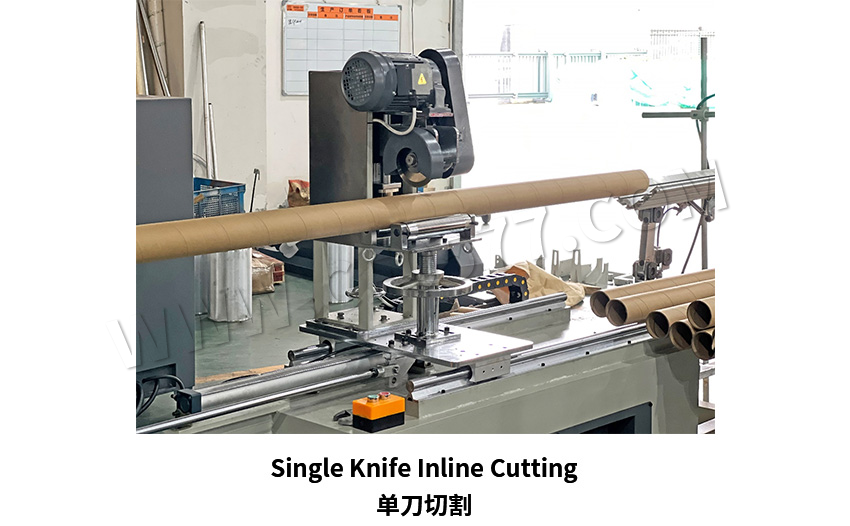

2. Single high speed steel blade online cutting system with cutting range 1000-5000mm.
3. All the brands of components like Motor; Inverter; PLC; Touch Screen can be customized.
Technical Parameter
Paper Layer | 10 layers |
Inner Diameter | 20-100mm |
Wall Thickness | 1-5mm |
Online Cutting Length | 1000-5000mm |

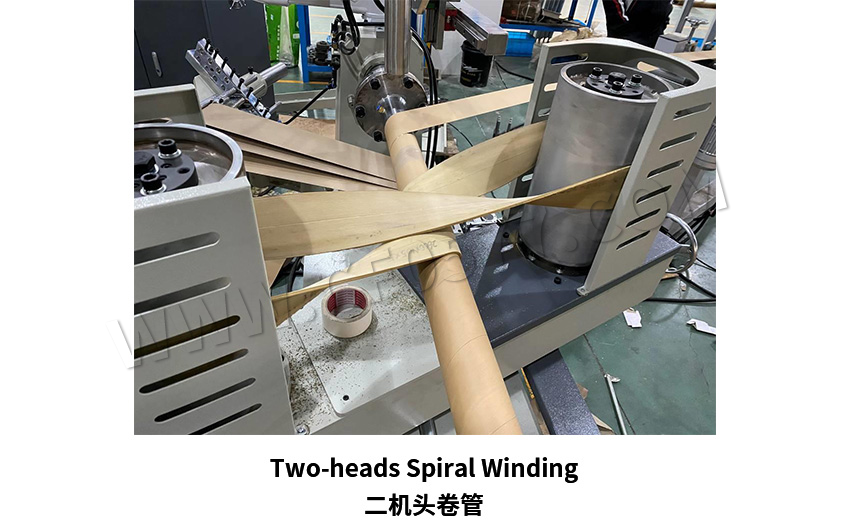

Winding Nose | Two heads single belt |
Working Speed | 1-25 meters/min |
Speed Regulation | By Inverter |
Cutting System | Single high speed steel blade |
Gluing Way | Single & Double sides |
Length Fixing | By Photoelectric switch |
Power Supply | 380V / 3Phase / 50Hz |
Paper Reel Stand | 10 Layers |
Glue Unit | 10 Layers |
Inner Paper Stand | 1 Set |
Tube Unloading Shelf | 1 Set |
Measurement | 2700*1600*1800mm |
Weight | 2200kgs |
Operator | 1 persons |
