Performance & Characteristics
This Machine is suitable for small and thin paper tubes like Preservative Film Cores; Tissue Paper Inner Cores, Paper Cans etc.
1. This machine adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
2. Cutting section adopted Servo Synchronous Tracking Cutting System makes it higher precision.

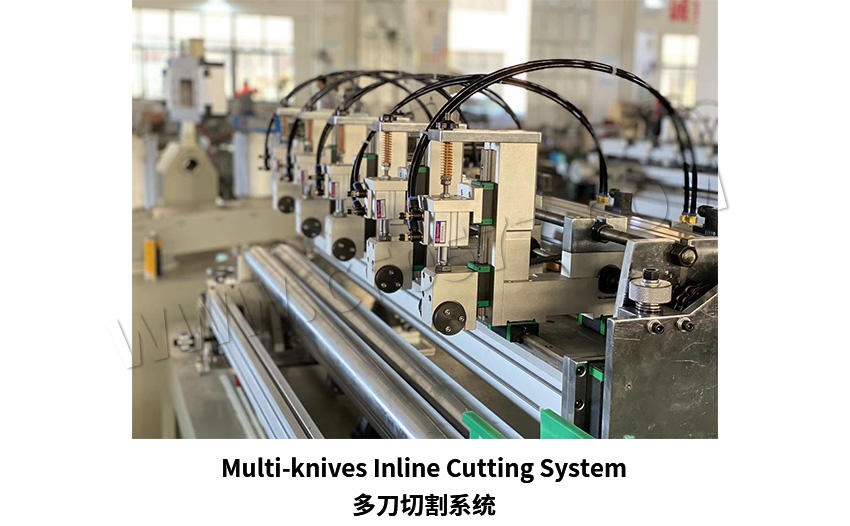

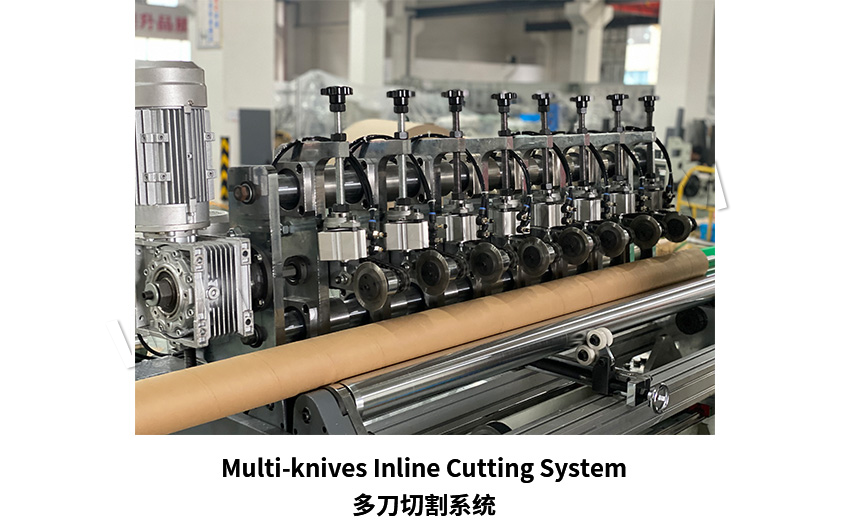

3. Multi-blades cutting system; 5 blade online cutting makes it higher efficiency.
Technical Parameter
Paper Layer | 10 layers |
Inner Diameter | 20-100mm |
Wall Thickness | 1-5mm |
Online Cutting Length | 100-1200mm |

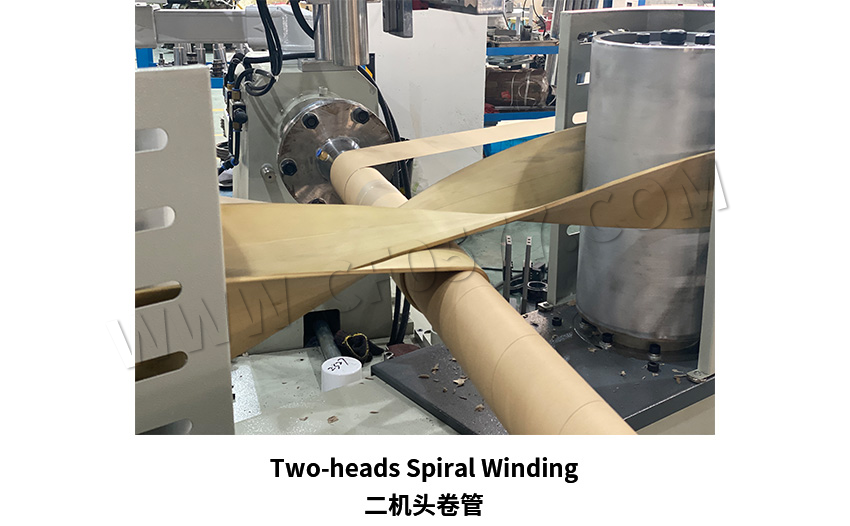

Winding Nose | Two heads single belts |
Working Speed | 1-30 meters/min |
Speed Regulation | By Inverter |
Cutting System | Multi-cutters (standard 5 pcs) |
Gluing Way | Single & Double sides |
Length Fixing | By Encoder |
Operator | 1-2 persons |
Power supply | 380v/3Phase/50Hz (Customizable) |

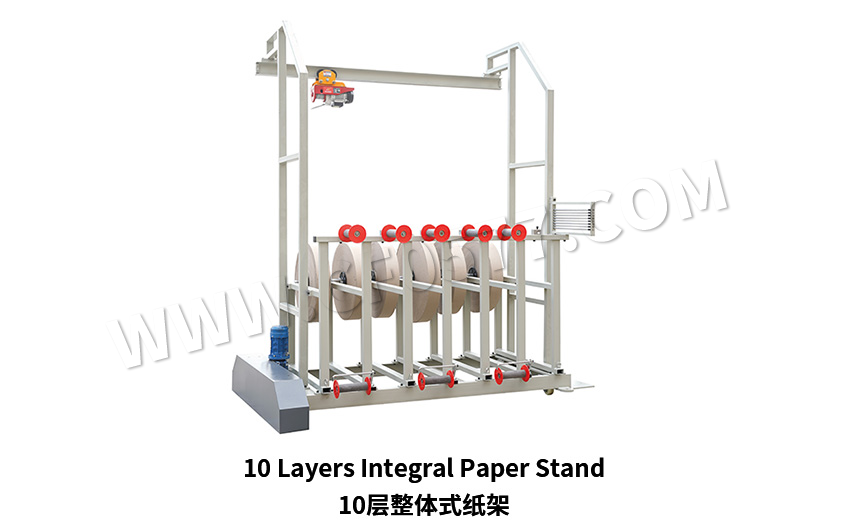

Paper Reel Stand | 10 Layers |

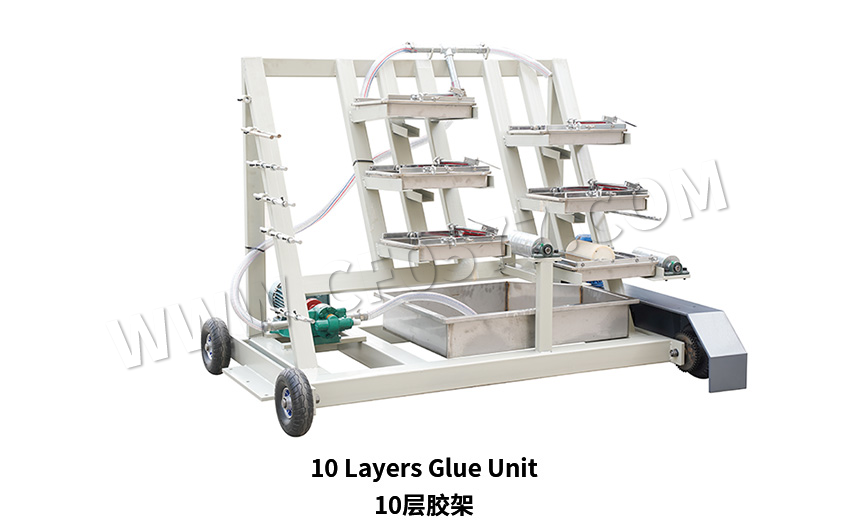

Glue Unit | 10 Layers |
Inner Paper Stand | 1 Set |
Measurement | 6355*1565*1800mm |
Weight | 4000kgs |
