CFQG-SK-150

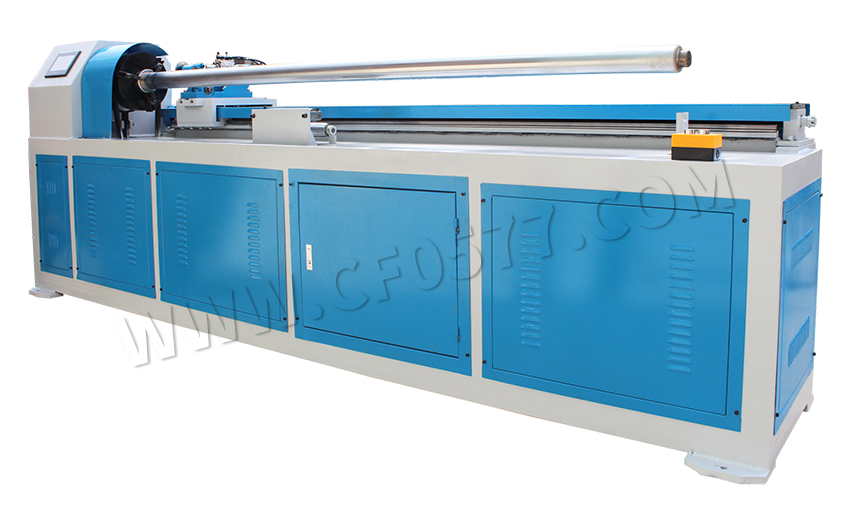

Precision Paper Tube Cutting Machine

Performance & Characteristics

This machine is suitable for variety kinds of paper tubes such as textile cores; adhesive tape cores; film cores and other industrial paper tubes & cores.



1. This machine adopted with PLC controller; touch screen man-machine interface. Easy for parameters setting & operating.

2. Servo motor synchronism tracking cutting system let the machine cutting in a higher precision; error ≤ 0.15mm.

3. Paper tube fixed by automatic chuck; only paper tube rotates during the cutting process. Cutting length from 5mm to 1700mm and wall thickness from 3mm to 15mm.

4. All the brands of components like Motor; Inverter; PLC; Touch Screen can be customized as per your requirement.



Technical Parameter

Inner Diameter

50-152mm

Wall Thickness

1-20mm

Mother Tube Length

1740mm

Cutting Tube Length

5-1700mm

Cutting Blade

Single Blade (Tungsten Steel)

Cutting Way

Pneumatic (Only Tube Rotates)

Cutting Speed

1 pcs/sec.

Knife rest moving speed

300mm/sec.

Tube Fixing Way

By Automatic Chuck

Tube Feeding/ Removing

Manually

Speed Regulation

By Inverter

Working Air Pressure

0.6Mpa

Power Supply

380V / 3 Phase / 50Hz

Operator

1 person

Measurement

2500*650*1220mm

Weight

900kgs
