Performance & Characteristics

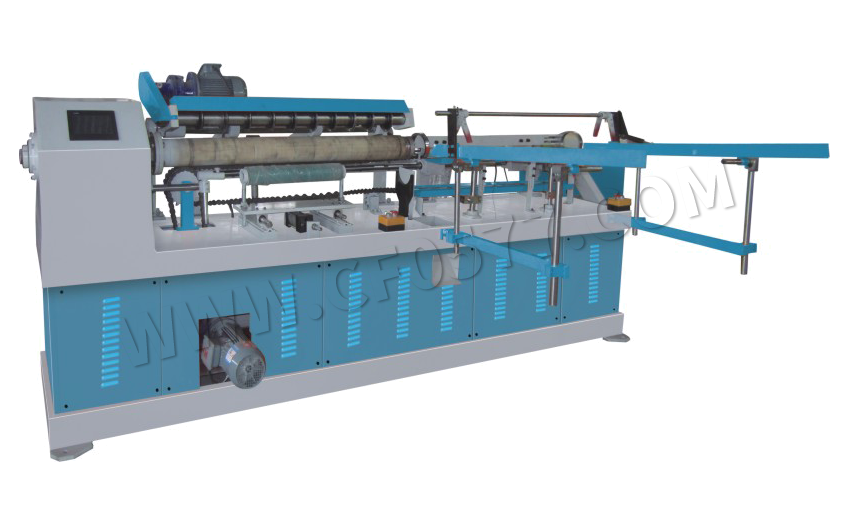

This machine is suitable for variety kinds of paper tubes such as textile cores; adhesive tape cores; film cores and other industrial paper tubes & cores.
1. This machine adopted with PLC controller; touch screen man-machine interface. Easy for parameters setting & operating.
2. Raw tube loading and finished tube unloading are totally automatic.
3. All the brands of components like Motor; Inverter; PLC; Touch Screen can be customized as per your requirement.
Technical Parameter
Inner diameter | 50-120mm |
Wall Thickness | 2-5mm |
Mother Tube Length | 1200mm |
Cutting Length | 40-300mm |
Cutting Blade | Multi-cutters (6 pcs) |
Cutting Type | Blades; shaft and tube rotate |
Cutting Way | Pneumatic |
Tube Feeding / Removing | Automatically |
Speed | 5 original tubes/min. |
Speed Regulation | By Inverter |
Working Air Pressure | 0.6Mpa |
Power Supply | 380V / 3 Phase / 50Hz |
Measurement | 3500*1600*1300mm |
Weight | 1200kgs |
Mandrel shaft | 2 pieces |
