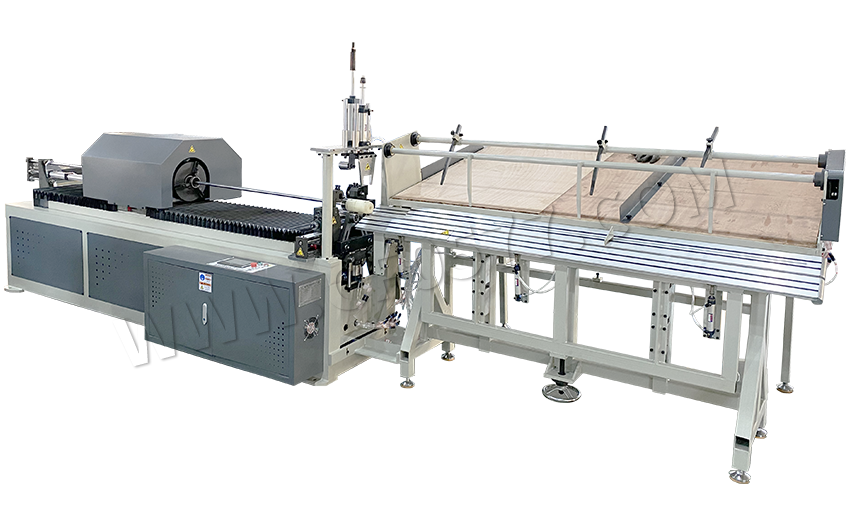

Performance & Characteristics
1. This machine adopted with PLC controller; touch screen man-machine interface. Easy for parameters setting & operating.
2. Servo controlled high precision cutting system. Double tungsten knives cutting makes cutting edges much more smooth.
3. Automatically tube feeding & removing, only one person required for operating.
Technical Parameter
Inner Diameter | 50-152mm |
Wall Thickness | 1-20mm |
Mother Tube Length | 1700mm |
Cutting Tube Length | 5-1700mm |
Cutting Blade | Double Blades (Tungsten Steel) |
Cutting Way | Pneumatic |
Cutting Speed | 1 pcs/sec. |
Knife rest moving speed | 300mm/sec. |
Tube Fixing Way | By Automatic Chuck |
Tube Feeding / Removing | Automatically |
Working Air Pressure | 0.6Mpa |
Power Supply | 380V / 3 Phase / 50Hz |
Operator | 1 person |
Measurement | 5300*2100*1220mm |
Weight | 1000kgs |
