Performance & Characteristics

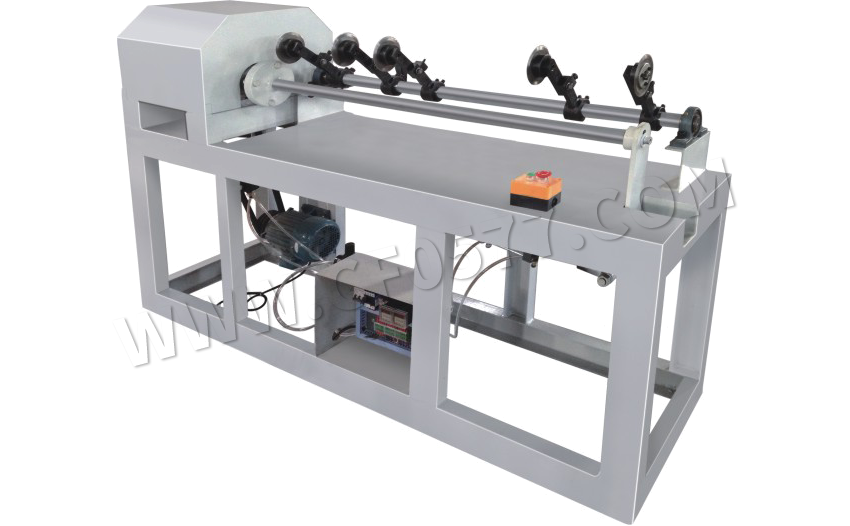

This machine is suitable for small & thin cores.
Technical Parameter
Inner diameter | 40-100mm |
Wall Thickness | 1-5mm |
Mother Tube Length | 1200mm |
Cutting Tube Length | 65-1200mm |
Cutting Blade | 5 pieces |
Cutting Way | Pneumatic |
Cutting Speed | 30 times/min. |
Tube Loading | Manual |
Tube Unloading | Manual |
Working Air Pressure | 0.6Mpa |
Power Supply | 380V / 3 Phase / 50Hz |
Operator | 1 person |
Measurement | 2400*600*1200mm |
Weight | 450kgs |
