Performance & Characteristics

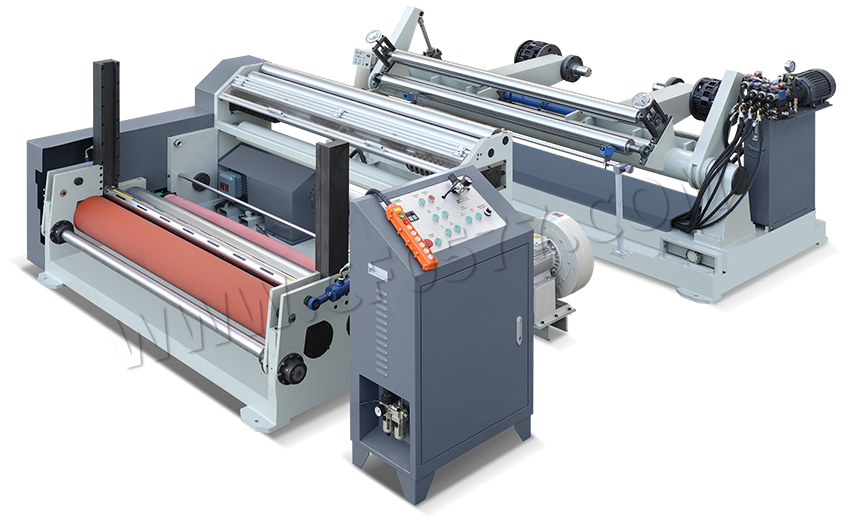

This Machine is suitable for cutting big width paper roll into smaller width reels.
1. It adopted with double cross blades (top & bottom blades) slitting make paper edge more smooth & neat.
2. Jumbo roll lifting by Hydraulic system; maximum unwind diameter 1300mm.
3. Rewinding side equipped with air expanding shaft, easily removing. Maximum rewinding diameter 1300mm.
4. Slitting part equipped with Curved Roll to make small reels separated automatically.
Technical Parameter
Material paper | 60-600gsm |
Unwind width | 600-1600mm |
Unwind diameter | 1400mm |
Rewind diameter | 1400mm |
Minimum slitting width | 40mm |
Working speed | 0-180m/min |
Material paper loading device | Shaftless Expandable chuck |
Loading | Automatically by Hydraulic |
Unloading | Automatically by Hydraulic |
Power supply | 380V 50Hz 3Phase |
Rewinder device | Air expanding shaft |
Braking device | Air Brake |
Blades | 20 sets (top & bottom) |
Operating box | 1 set |
Tool | 1 set |
Curved roller | Have |
Measurement | L3380 * W1448 * H1200mm (unwind side) |
Weight | 3000kgs |
